530 T Hydraulic Injection Moulding Machine SGS Small Injection Molding Machine

Name: 530 T Hydraulic Injection Moulding Machine SGS Small Injection Molding Machine
Brand: OUCO
Price: 1 USD

Quality 530 T Hydraulic Injection Moulding Machine SGS Small Injection Molding Machine wholesale

Brand Name : OUCO

Model Number : OUCO-O530T

Certification : CE, ISO9001:2008, SGS

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 500 sets/year

Delivery Time : 2 months

Packaging Details : Nude

Product Name : 530 T Advanced Small Scale Injection Molding Machine With Robot Arm

Type : Automation

Function : Plastic Parts Production

Motor : Servo Energy Saving

Color : Support customization

Stable Performance : Short Cycle Time

Clamping Way : Hydraulic

Transport Package : FCL

Contact Now

530 T Advanced Small Scale Injection Molding Machine With Robot Arm

Optimized functions

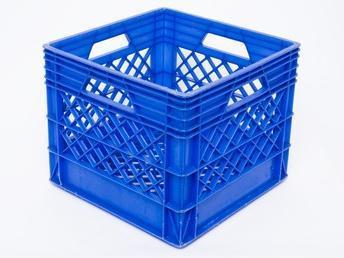

1.Expanded motor and pump system, optimized hydraulic system for high performance and faster cycles. Like crate (less than 2kg) cycle time 20s;

Spray paint bucket (780-800g) cycle time 20s.

2. Specially designed screw and barrel structure for faster plasticization and shorter loading cycle.

Optional bimetallic screw and barrel to be compatible with the recycled material of the box.

3. Optional automation equipment is available to improve production efficiency.

The above translation results are from Youdao Neural Network Translation (YNMT) - General Domain

Sentence-by-sentence comparison

Product Parameters

TECHNICAL PARAMETER TABLE
INJECTION UNIT	SCREW DIAMETER	mm	100
	SCREW L/D RATIO	L/D	19
	INJECTION CAPACITY IN THEORY	cm3	3298
	INJECTION WEIGHT(PS)	g	3000
	INJECTION PRESSURE	MPa	134
	INJECTION RATE	g/s	663
	PLASTICIZING CAPACITY	g/s	100
	SCREW SPEED	rpm	137
CLAMPING UNIT	CLAMPING FORCE	KN	5300
	MOVING MOULD-PLATE STROKE	mm	830
	MAX. MOULD HEIGHT	mm	990
	MIN. MOULD HEIGHT	mm	330
	SPACE BWTWEEN TIE-BARS (W×H)	mm	880x810
	HYDRAULIC EJECTOR FORCE	mm	181
	HYDRAULIC EJECTOR STROKE	KN	230
	EJECTOR NUMBER	n	17
OTHERS	PUMP PRESSURE	MPa	16
	MOTOR /DRIVING POWER	KW	55
	HEATING CAPACITY	KW	30
	MACHINE DIMENSION (L×W×H)	m	8.52.142.43
	MACHINE WEIGHT	t	20.5
	OIL TANK CAPACITY	L	1150

Detail Pictures

530 T Hydraulic Injection Moulding Machine SGS Small Injection Molding Machine

Company Profile

530 T Hydraulic Injection Moulding Machine SGS Small Injection Molding Machine

Product Tags:

530 T Hydraulic Injection Moulding Machine

100mm Hydraulic Injection Moulding Machine

SGS Small Injection Molding Machine

530 T Hydraulic Injection Moulding Machine SGS Small Injection Molding Machine Images
